The application of bitwise AND operation (비트 논리곱(&) 연산)

The bitwise AND operation with 255 is really helpful in keeping the lowest 8 bits and remeoves the negaitive sign bits added during int conversion.

For example,
A C program in Embedded System is trying to send some data to external java program.

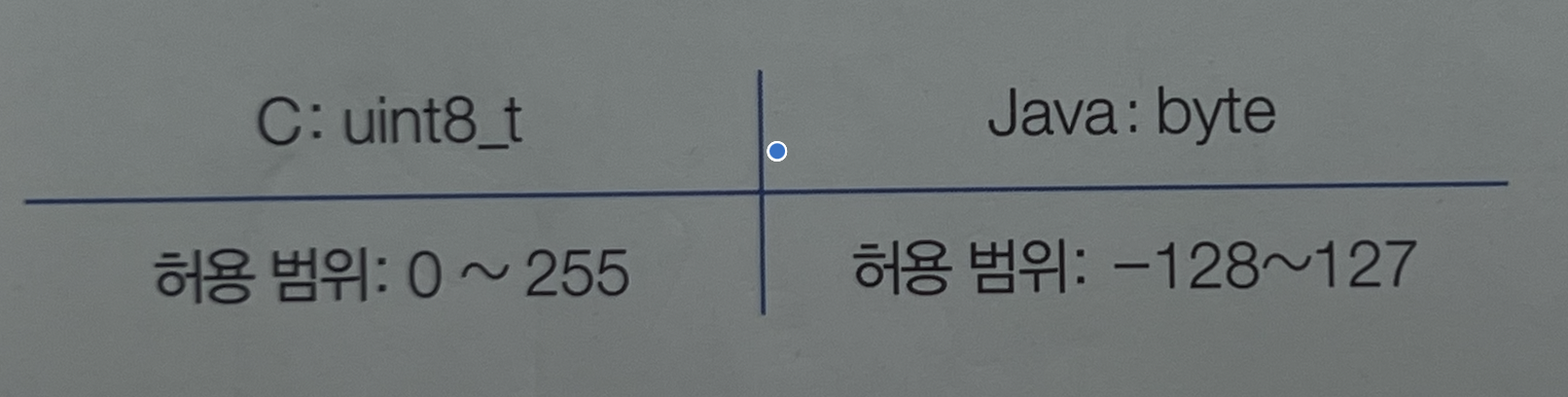

C has uint8_t type, this type is 1byte and has value of 0~255 range.


If the C program sent the 136 in binary, uini8_t type, java read this binary as -120.
Because, if the leftmost bit of the full bits, java perceives it as negative.

So, if you want to restore 120 to 136 that C program sent, you should perform bitwise AND operation.
The process of this looks like below.

byte receiveData = -120;
int unsignedInt = receiveData & 255; // 136

To go into detail in memory,

In here, you might have a question.
Why we perform bitwise AND operation with 255??

255 has eight 1s in binary, so AND operation with it keeps only the lowest 8 bits and removes the negative sign bits added during int conversion.

In other words, we use "& 255" operation to see that number of 8 bits in 0~255 range.

( unsigned, not signed(-128 ~ 127) )



+)

The sign is determined by the leftmost bit of the full type.

For byte (1byte),

0xxxxxxx → positive
1xxxxxxx → negative



For int (4byte),

0xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx → positive
1xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx → negative







----------------------
